Oral Dissolving Film Packaging: Moisture, Barriers, Seals and Stability

Oral dissolving film packaging needs to support two different states. During storage and handling, the strip should remain intact. In the mouth, it should wet, disintegrate or disperse as designed. A change in moisture can affect the first without producing an equally noticeable change in disintegration time. Assessing a pack therefore means considering the film formulation, material barrier, seal and stored-product results together.

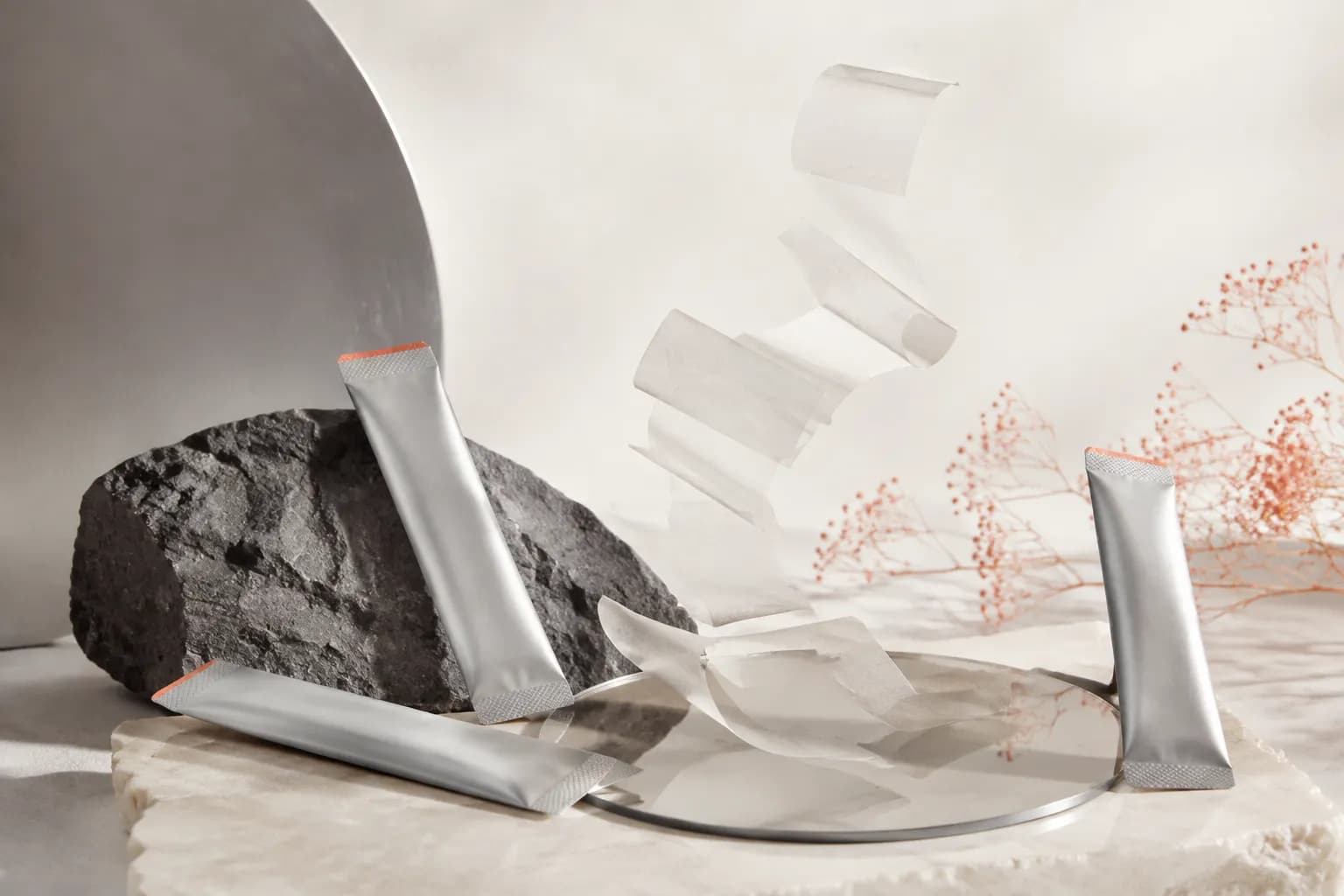

Silver individual sachets and translucent oral film sheets on a light surface.
In this guide

The aim is to maintain the required quality of a particular formulation under its intended storage and use conditions. A silver sachet, a low moisture-transmission number or one successful sample removal answers only part of that question.

This guide concerns films intended to disintegrate or disperse in the mouth. Disintegration does not demonstrate buccal absorption; the formulation, intended use and destination market still determine product classification and permitted claims.

How moisture affects the film, and why formulation matters

The film-forming polymer provides the continuous structure, while a plasticizer helps adjust flexibility. Glycerin, for example, can change interactions between polymer chains and increase their mobility, making a film easier to bend. Flexibility, tensile strength and breakdown in water do not necessarily change in the same direction.

A 2026 polymer-film study by Kurien and colleagues compared polyvinyl alcohol (PVA) and hydroxypropyl methylcellulose (HPMC) systems containing glycerin or polyethylene glycol. Plasticizer type and concentration affected mechanical and disintegration behavior. These were model films without active ingredients, so the study cannot directly select formulation ratios for a nutrition strip. It does explain why the polymer and plasticizer system need to be assessed together.

Moisture is another important variable. As a film takes up or releases water in different humidity conditions, its softness, strength or handling behavior may change. The extent depends on the formulation.

In a 2021 model-film experiment by Takeuchi and colleagues, the researchers compared hydroxypropyl cellulose, polyvinyl alcohol and pullulan systems. The published abstract reports that increasing water content reduced tensile strength without a marked change in disintegration time. Pullulan films took up more water but retained their mechanical properties well. These findings do not rank every oral film formulation, but they show why water content, intact removal and disintegration need separate interpretation.

For example, a stored strip may still disintegrate under the test method yet tear when removed from its sachet. That remains a product issue. Conversely, a measured change in water content does not establish failure by itself; the question is whether the change affects the product's defined quality requirements.

Making the film as dry as possible, or switching to a stronger film base, is therefore no universal solution. Formulation development needs to identify an appropriate state for the product, with packaging that helps maintain it. The oral film formulation guide explains the relationship between film-forming materials, active ingredients and development.

What a material's WVTR tells you about protection

Water vapor transmission rate (WVTR) is the mass of water vapor passing through a unit area of material per unit time under a specified temperature, humidity difference and test method. A common unit is g/(m²·day). ASTM F1249 is one test method for flexible barrier materials. Its public scope also cautions against assuming simple proportional relationships between WVTR, thickness and the water-vapor pressure difference across the material.

When comparing results, consider material construction, thickness, temperature, humidity conditions and method together. If two reports use different conditions, the lower number alone does not establish the more suitable material.

A worked example of the units

Suppose a material has a WVTR of 0.10 g/(m²·day) under defined test conditions, and the effective transmission area of both faces of a sachet totals 0.010 m². Temporarily assume that the transmission rate and conditions remain unchanged. Counting only transmission through the material faces, the calculated amount over 30 days is:

0.10 × 0.010 × 30 = 0.030 g, or 30 mg of water vapor.

This hypothetical example explains why area and time matter. Two sachets made from the same material can have different calculated transmission amounts if their areas differ. The area here already includes both faces; it should not be multiplied by two again.

The 30 mg is neither the water actually absorbed by the film nor a product failure threshold. The calculation excludes seals, leaks and opening, and does not describe changes in humidity inside the actual pack over time. Moving from material data to product stability requires results for the assembled pack and the film itself.

Likewise, a silver appearance does not describe the complete material construction. The layer contacting the film, the barrier layer and the condition of the converted sachet all form part of the actual packaging. The outer carton mainly provides presentation, instructions and organization of the units. Any specific moisture or light protection attributed to it needs evidence for that structure.

Seal strength, leakage and opening answer different questions

A sachet material can provide a useful barrier while its seals still need separate assessment. There are at least three questions: how much force separates the seal, whether a leakage path exists, and whether the user can open the pack and remove the film intact.

ASTM F88/F88M measures the force required to separate a specimen containing a seal and can help assess sealing consistency. For a peel-open pack, excessive strength can also make opening difficult. The goal is a consistent seal suited to the pack's function and opening design.

Leak testing addresses a different property. For example, ASTM F3039 uses dye penetration to detect leakage in applicable areas of nonporous packaging or flexible barrier materials. It is a qualitative method, so its result cannot calculate leak flow or shelf life. An integrity method needs to match the material and construction; the methods discussed here are examples rather than a mandatory test combination for every product.

The sealing process also needs to suit the actual equipment. The public explanation of ASTM F2029 distinguishes laboratory heat-seal work from production equipment. Laboratory results can provide a starting point, but differences in equipment scale, sealing area and processing speed can affect performance. Successfully sealing a laboratory specimen does not complete validation of sachets on a production line.

Finally, assess the whole pack. Does the tear or peel opening leave enough room to grasp the strip? Does the film adhere to the contact surface? Does it fold or tear during removal? These observations can identify a use problem, but the symptom alone cannot establish whether moisture, sealing or formulation caused it. Recording where and under what conditions it occurs gives development a clearer direction than simply asking for a stronger seal.

Individual sachets and shared packs face different opening conditions

An individual sachet allows one unit to be opened while the other sealed units remain closed. A shared pack exposes its remaining contents during removal and then depends on how the user recloses it.

This difference explains the assessment priorities without proving that either format has a longer shelf life. Individual packs still depend on their materials, seals and removal design. Shared packs also need consideration of opening frequency, time left open, remaining strip count and reclosing procedure.

Taking out one strip each day and immediately reclosing the pack creates a different exposure from leaving it open on a desk. Unopened storage alone cannot answer whether the remaining strips maintain the required quality after repeated opening. For an individual sachet, the unopened storage period likewise does not establish how long an unpacked strip can be left before use.

After-opening instructions should therefore reflect the actual use scenario. When comparing two packs, use the same film batch where possible and keep the condition before packing and the storage starting point consistent. This reduces the chance of mistaking formulation or conditioning differences for packaging effects. The supplement sampling guide covers organizing sample records and feedback.

Stability evidence needs to represent the final pack

A stability study examines a product over time under defined conditions. For an oral film, an interpretable result connects the formulation and batch, immediate packaging construction, sealing condition, storage conditions, completed time points and specific quality attributes.

Different results serve different purposes:

Reading oral film packaging and stability evidence
Result or observationWhat it helps answerWhat it cannot establish alone
Film water content or uptakeHas the film's moisture state changed under the specified conditions?Intact removal or active-ingredient stability
Tensile, flexibility or removal assessmentDoes the film retain its required mechanical and handling performance?Active-ingredient content or absorption
Disintegration under a defined methodDoes the film meet that method's disintegration requirement?Moisture protection or every user's oral experience
Material WVTRHow does water vapor pass through the material under defined conditions?Finished-seal integrity or product shelf life
Seal strength or an appropriate leak checkDoes the tested seal or pack meet the relevant requirement?Product quality throughout the entire storage period
Product results over time in the final packDo the relevant attributes meet criteria at the completed conditions and time points?Untested pack versions, periods or opening scenarios

These distinctions explain evidence rather than set shared limits for every oral film. Nutrition products also need suitable content, microbiological and other quality attributes selected for their ingredients, formulation and destination market. Normal appearance cannot replace a relevant chemical test, and one satisfactory disintegration result cannot replace the other defined quality requirements.

The final pack has a specific meaning here. The combination used for storage work should represent the intended immediate packaging, fill quantity and sealing method. Results for loose films in a temporary shipping bag cannot simply be assigned to a different retail sachet. If an outer carton provides necessary protection, the study should make clear whether that component was included.

When reading a report, connect the measured results to the proposed conclusion. From the initial state to each completed time point, which attributes changed, and which remained within predefined criteria? A release test report describes the covered sample and tests at that point; it does not show changes over storage.

Changes to the film base, plasticizer system, immediate material, sachet dimensions or sealing process require a rationale for whether existing results still apply. A small change does not necessarily restart every study, but similar appearance is insufficient grounds to carry a conclusion forward. The formulation review guide explains how changes feed into sample development.

Shelf life needs a period and defined conditions

There is no universal oral film shelf life that follows from the dosage-form name. A proposed period belongs to a defined formulation, packaging combination and storage conditions, supported by evidence appropriate to that product.

For US dietary supplements, Question 14 of FDA's labeling guide explains that expiration dating is not required on the label. A company choosing to include it should have valid supporting data so that the information is not false or misleading. The FDA dietary supplement CGMP guide also says that a voluntarily established date should have supporting data, as should disintegration or dissolution specifications if established.

That guidance concerns US dietary supplements. It is not a shared rule for every market or every oral film category, and it does not establish FDA approval of a product. Other destinations and categories, including medicines, need requirements assessed for the actual intended use.

The useful question is how the proposed period connects to the evidence: the temperature and humidity studied, whether the pack stayed unopened, which final pack was used, and which completed results support the conclusion. Storage instructions also need to be usable. Terms such as room temperature or cool and dry provide limited help with distribution and storage if their intended range is unclear.

A result under one storage condition cannot be extended without explanation to hotter, more humid or repeatedly opened conditions. Packaging protection, storage instructions and shelf life should describe the same product and the same set of applicable conditions.

Developing the formulation and packaging together

When a strip disintegrates as intended but is difficult to remove intact, development needs to consider the film's condition, contact surface and opening design. When a shared pack needs to support repeated use, assessment also needs to cover the resulting exposure. Defining these relationships helps identify whether the next adjustment belongs in the formulation, packaging or use instructions.

Browse the oral film product range, or discuss oral film formulation and packaging with VITHELO, including the destination market, intended use and specific behavior you need to resolve. For component quantities and project scheduling, see how packaging affects MOQ and lead time.
